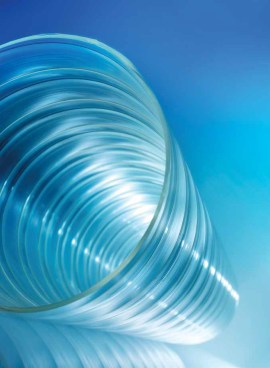

Flexible Hose & Ducting Range for the Chemical Industry




Master-Clip Viton is a Viton coated polyester fabric ducting with an external galvanised steel helix.

Suitable for the Extraction of Chemical and solvent fumes at high temperatures

Properties

Highly flexible and compressible
Outer helix protects against abrasion and scuffing
UV and ozone resistant
Excellent chemical resistance


Master-Clip Viton Technical hose from Masterflex Technical Hoses Ltd


Another featured product from the Masterflex Technical Hoses, chemical Hose range is

Master-Clip PTFE H.

This is a PTFE lined Hypalon coated polyester fabric ducting with reinforced with external galvanised steel helixProperties and is highly flexible. The Outer helix protects against abrasion and scuffing during installation, it has  UV and ozone resistance and  Excellent chemical resistance


For more information about Master-Clip PTFE H click the link below


To discover more about the Masterflex Chemical Hose Range, visit

www.masterflex-uk.com

For any product information or advice telephone 0161 626 8066 we are happy to help.

Press Release; Economical usage of energy even in hazardous areas…

TEMPLINE INTERNAL BLOG

An Alternative concept for Electrically Heated Hoses

Many substances require supplementary heat for transport. The usage of electrical heat in flexible hose is also a significant challenge in applications for hazardous areas.

The templine heated hose available from Masterflex represents an alternative concept, in which a minimum of our heating conductors cover the medium carrying hose in a way to ensure optimal heat transfer.



Industrial heating systems for tracing are represented by heating tapes and series-resistive heating cables designed for extreme operating conditions. On surfaces of tanks and pipelines, process conditions require highly protected and electrically reliable heaters to support long process lifetime.  As an alternative to electricity, steam can be supported in two-wall pipes or in accompanying small pipes joined to medium pipes. Heat transfer quality in those solutions, depend to a large extent on the continuity of the steam supply, the occurrence of leakages and the quality/condition of the thermal insulation.

Manufacturers of conventional heated hoses are also active in heat tracing business. Here we find two alternative systems:

.Series resistive heating cables with metallic heating strand: the conductor comprises of resistance alloys where heat production is based on current and resistance of alloy. Heat emission is independent from ambient conditions.

.Heating tapes with a semi-conductive heating element: the core is manufactured of a plastic/carbon black mixture reacting on an increase or decrease of ambient temperature by acceleration or drop of heat output. This accords to a specific and predefined process (PTC characteristic.)

Developers of electrical heating systems are confronted with various challenges linked to the laws of physics. Plastics are electrical and thermal insulators. Their heat transfer resistance increases along with the material thickness around the heating conductor. Additional energy (heat) is required to transcend this barrier for achieving anticipated process conditions.

A second important aspect is the heat that is propagated from the heating cable or tape to the heated surface. The smaller the contact surface between the heater and the hose, the less efficient is the heating system. This again requires additional load to compensate and possibly an extra heating cable or tape to minimise temperature variations on hose surface.

This again requires additional load to compensate and possibly an extra heating cable or tape to minimise temperature variations on hose surface. The picture of a thermal imaging camera above shows the typical heat expansion of a conventional heating cable or tape on a pipeline. Whereas the red area in the centre indicates high temperatures, the values drop rapidly towards the edges (blue).

In the case of heating tapes with a semi-conductive heating element, the heat concentration leads to an automatic load reduction and results in an ineffective heater performance. Compensation can be the installation of more cable or tape runs.

High bending and free moving space

A study of various heated hose designs reveals the need of a high level of tensile strength and pressure resistance paired with bending and torsion strength. These properties should not be interfered with by the assembly of a heating tape or cable. Heating tapes and cables assembled on a hose surface, spiralled or straight/ parallel, reduce bending flexibility. Heating tapes do not follow minor bending or torsion. Furthermore, contact for heat spread can go lost to surface heated. Result: Reduced or lost heat transfer.

Winding an industrial heating cable with series-resistive performance around a hose represents a compromise. Here again the quality of heat transfer is influenced by several plastic layers between the conductor and the hose. This fact is offset by an increased load and a higher surface temperature of the heating conductor, resulting in lower specific loads and operating temperatures. The limit is determined by the maximum operating temperature of the hose components.

Hose installations in hazardous areas require specific attention to heat propagation and hot spots (punctual overheating caused by low heat transfer.) Both factors need to be taken in consideration together with the ignition temperature rating and energy. High heating element or conductor temperatures restrict opportunities for employment in this specific area.

Bending-friendly hose concept

A new heated hose design from Masterflex can be able to deliver the answer to all questions. The core of the templine heated hose system is a flexible hose combined with temperature resistive braid. The yarn used combines high abrasion resistance with tensile strength and compression resistivity. The circumferential braid supports bending flexibility about 360° with 180° bending angles. Four heating conductors perpendicular to each other are incorporated in the braiding. Their positions create a helix of four heating conductors. The hose acts as a spiral spring that prevents kinks or conductor breaks by over expansion or compression. Even under extreme conditions like permanent tension, pressure or torsion (automation robotics), the service life is increased compared to conventional systems.

This enhanced performance finds its confirmation in test reports of independent institutes, where hoses with inside diameters between 4 and 25 mm have withstood more than one million turns.

The spiral embedded heating conductor ensures almost entire contact with the hose surface and initiates homogenous heat – a result of the braid design, yarn quality and method of conductor embedding (low heat transfer resistance).

The combination of a metallic heating conductor and in-house developed temperature controller represents an ideal combination to achieve the required media temperature in close tolerances: an important criterion for conveyed temperature-sensitive liquids, gases and pellets. Even the assembled heated hose can be rearranged to change the basic load value by changing the heating conductor connections (50 to 200%) together with taking in account specific material limits. Figure 1 shows the thermal performance of a heater operating without thermal insulation or a protective outer braid.

A direct comparison between conventionally heated hoses and the templine heated hose system reveals the increase of energy efficiency by max 30%. Hot spots can lead to dangerous operating conditions inside hazardous areas. Owing to the system concept and the optimised engineering design, the templine heated hose reduces this risk to a minimum. www.cpp.net.com/2111440

AT A GLANCE

Features of the system;



.Hose diameter:4,6,

 8,10,12,14,16,20& 25mm

.Two product series:

 type  1:operating temperature max. +80°C

 type11:operating temperature up to 200°C

.Operating voltage: up to 230 V

.Minimum 4 heating conductors,

 fluoropolymere insulation.

.Protective class 1, safety class IP65

.Hose fitting acc. to international standards (mild steel, stainless steel)

.Templine configurations:

 External supply (no controller)/ system

 Specific temperature controller /temperature limiter / temperature controller / temperature limiter assembled in terminal enclosure.

For further information or guidance regarding templine heated hose contact http://www.masterflex-uk.com , email info@masterflex-uk.com or telephone 0161 626 8066

We are happy to help.

High temperature hose from Masterflex Technical Hoses Ltd

If you work in the automotive industry or utilize robotics in manufacture, have you heard about templine the flexible Heated Hose from Masterflex Technical Hoses Ltd, with a design that eliminates cold and hot spots, even when the hose is flexed and bent. Read on to find out product features and areas of suitability, this unique design could improve your production and manufacturing quality and reliability.

application a

Product features:

  • Innovative construction that prevents hot spots
  • Unique termination design – water tight preventing ingress of moisture and dust also preventing heat loss
  • Optional addition of Masterflex integrated self regulating temperature control
  • Hose operation to +220ºC
  • Pressure tested to 500 bar
  • Tested to 1 million bending operations and demonstrates high mechanical strength
  • Wide range of couplings to suit different applications
  • Hoses diameter to 4mm to 50mm
  • Custom designed hoses bespoke to your requirements

Suitable for:

  1. Application of hot adhesive to secure windscreens providing optimum adhesion within specified temperature range.
  2. Glue robots for car body and windscreen compounds
  3. Car Exhaust measurement
  4. Painting systems
  5. Surface Protection

If you require any further help or advice regarding this product please don’t hesitate to contact us on 0161 626 8066 or email info@masterflex-uk.com, we are happy to help;

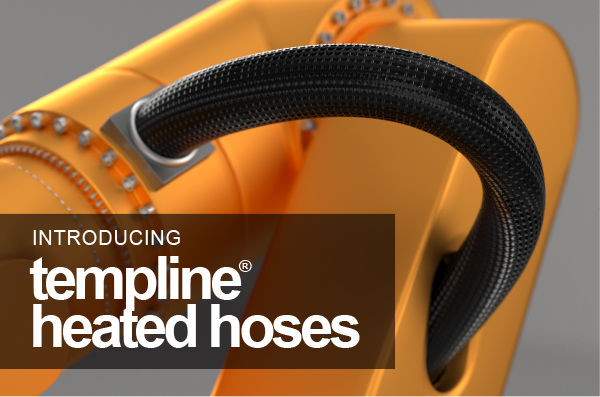

templine® HEATED HOSE

The heated hose that has been designed in response to customer requirements - delivering evenly distributed, constistent and measureable heat.hose2 hose3

elec

The heated hose that has been designed in response to customer requirements – delivering evenly distributed, consistent and measurable heat.

Why consider templine?

Templine allows a three dimensional motion. Unlike rigid pipes, the unique templine flexible hose, ensures that the heat remains evenly distributed and consistent throughout the hose, while allowing flexing and movement.

In conventional heated hose systems, bending and flexing the hose, can cause a burden on the heating system as the hose is stretched and compressed. The forces upon the heating system can lead to fatigue, and hot and cold spots developing.

The templine unique design eradicates this problem. Heat can remain constant while the hose is flexed and compressed, alongside it’s scuff and abrasion resistance.

Basically templine provides a unique opportunity for increasing quality of production through reliability and durability.   Continue reading

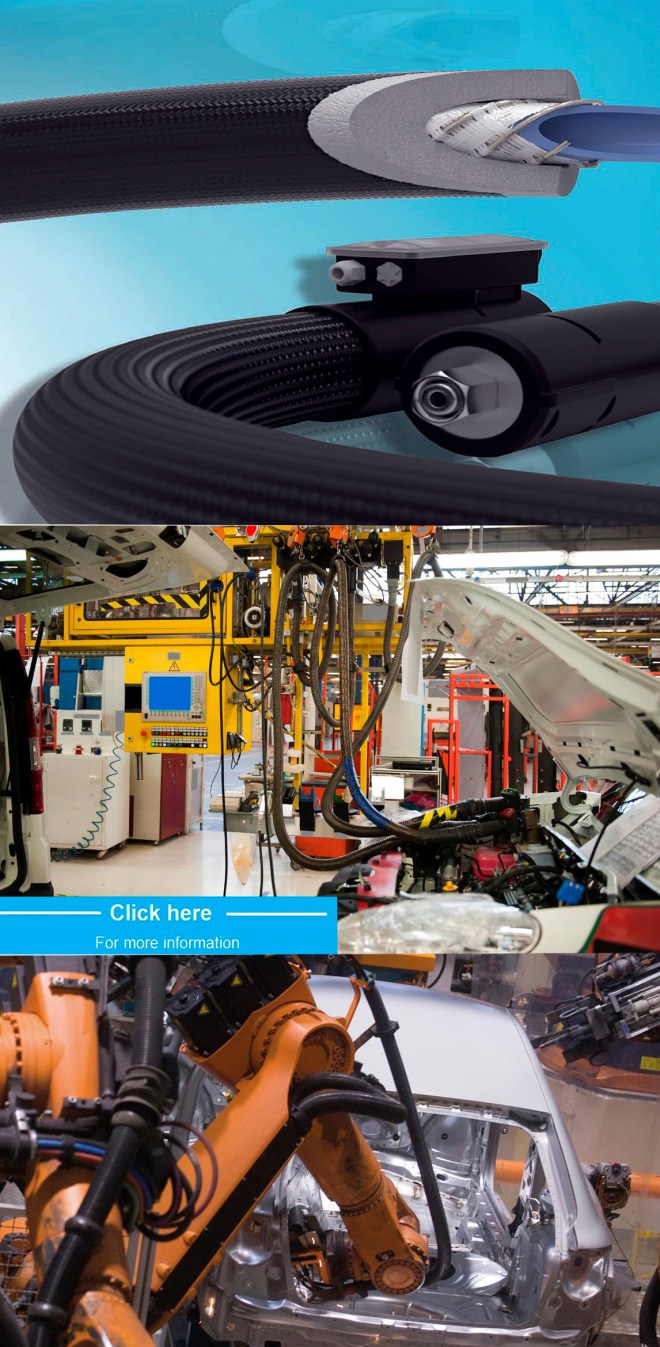

Heated hose for use in robotics & automotive industry

Heated hose for use in robotics & automotive industry

There are many heated hoses in use within the robotic and automotive industry, but only templine’s unique design ensures a steady flow of heat throughout the hose, with no cold or hot spots when the hose is flexed. This allows manufacturers to use templine with confidence in the quality of the products produced.

Read more ….

templine® Heated Hose innovation for Automotive Manufacture

Suitable for ;

Application of hot adhesive to secure car windscreens, providing optimum adhesion within specified temperature range.
Glue robots for car body and windscreen compounds
Car Exhaust Measurement
Painting systems
Surface protection

Why choose templine from Masterflex…

Innovative construction that prevents hot spots
Unique termination design – water tight preventing ingress if moisture & dust, also prevents heat loss.
Masterflex integrated, self regulating temperature control (optional)
Hose operation up to +220º
Pressure tested to 500 bar
High mechanical strength ( tested to 1 million bending actions)
Wide range of couplings in mild steel, stainless steel and brass
Hoses diameter 4mm to 50mm
Custom hoses designed, developed and manufactured
